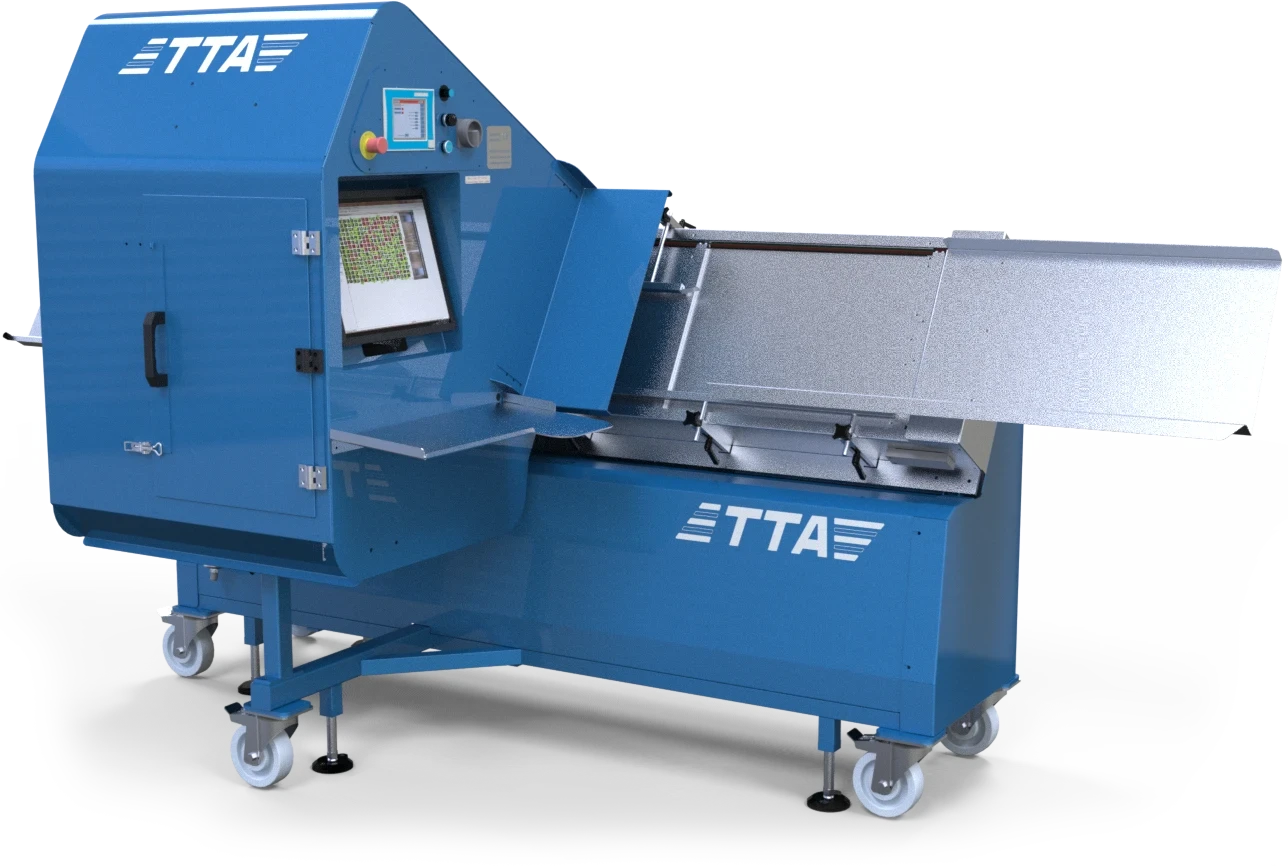

Mobile Blow Out

Description

The Mobile Blow Out identifies and extracts the missing plants to prepare the trays for manual fixing. The production speed is up to 600 trays per hour.

Trays with young plants will be manually placed into the machine. They will be identified with TTA-ISO's in-house developed imaging system. The selection of the plant material can be individually adapted. For instance, values like plant size, plant color, position of the plant on the plug, etc., can be altered depending on the plants or current growing circumstances.

Depending on the settings, single plugs will be removed from the tray. TTA-ISO's imaging system runs under Windows and is very user-friendly. After the selection part, the trays come into the blow-out part, where the NOK plugs will be removed from the tray. The removal takes place with air nozzles, which blow the plugs out of the tray from below.

The blow-out section can easily and quickly be adapted to another tray size by means of an interchangeable blow-out bar. The machine includes one complete tray setup. The removed plugs will be dispatched sideways towards two boxes. Regarding tray sizes, all standard sizes can be accommodated (maximum tray size: 600x400 mm). The complete tray changeover time is under 15 minutes. All plug tray settings can be stored in the memory.
