Manual Sticking Line
A double conveyor system with stop positions for individual trays and corresponding work positions.
The manual sticking line comprises a double conveyor system with stop positions for individual trays and corresponding work positions.
Description

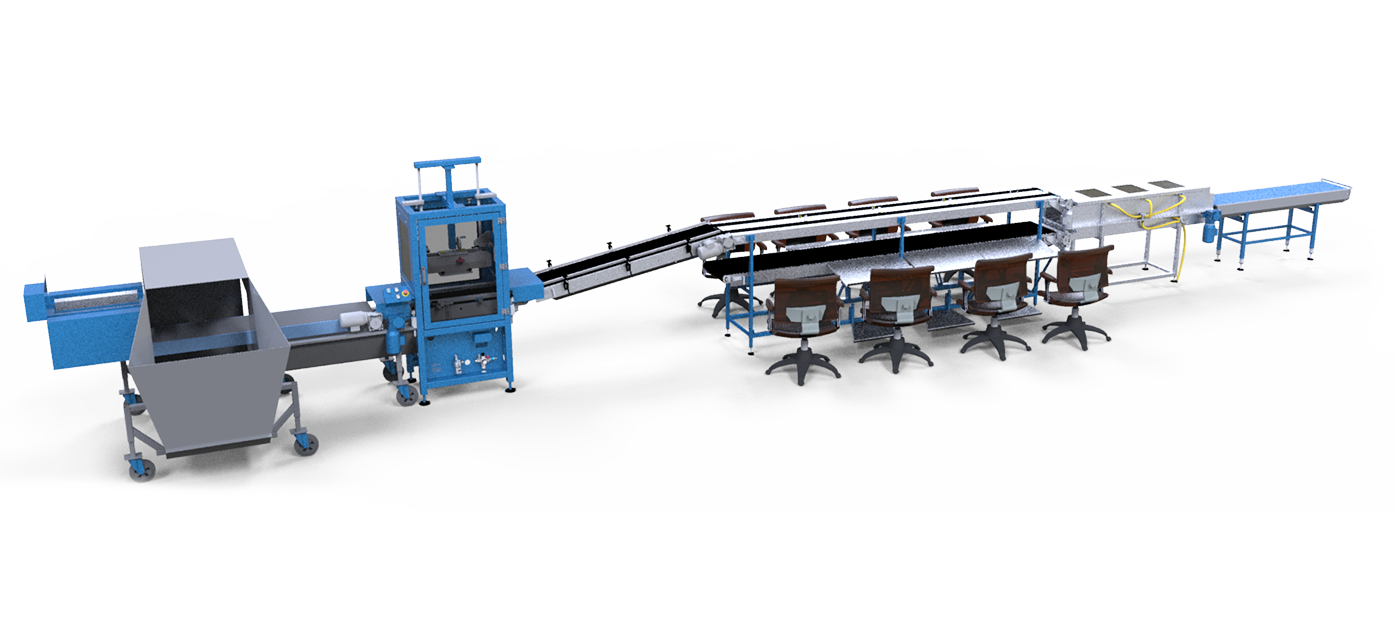

The Manual Sticking Line is a double conveyor system with stop positions for individual trays and corresponding work positions.
The manual sticking line is provided with two levels. On the top level, where trays enter the sticking line, each individual tray is positioned separately in front of the employees. The bottom level has a conveyor belt with working tables mounted on both sides. These working tables can tilt, allowing people to find their ideal working position. The employees now take the trays from the top level. Gravity will help them to place the tray on their working table.
As soon as a tray is finished, it can be manually pushed from the table right onto the bottom conveyor belt. The employee can take a new tray, which will be positioned on the upper level in the meantime, assuming sufficient external infeed. Processed trays leave the sticking line. The manual sticking line can be provided with registration software, which makes it possible to monitor individual productivity.
Manual Sticking Line
in action
01
02
03
04
05
06
